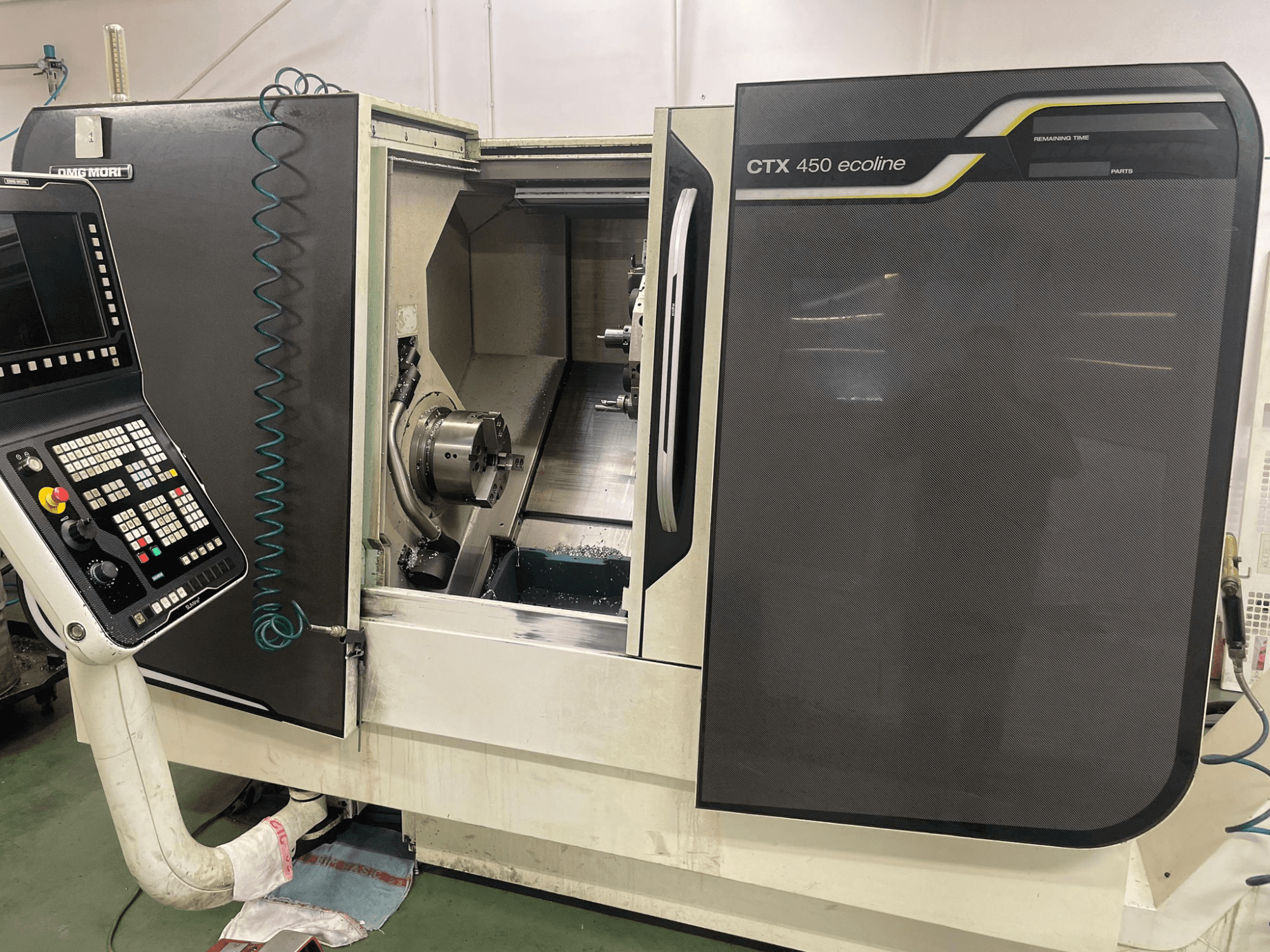

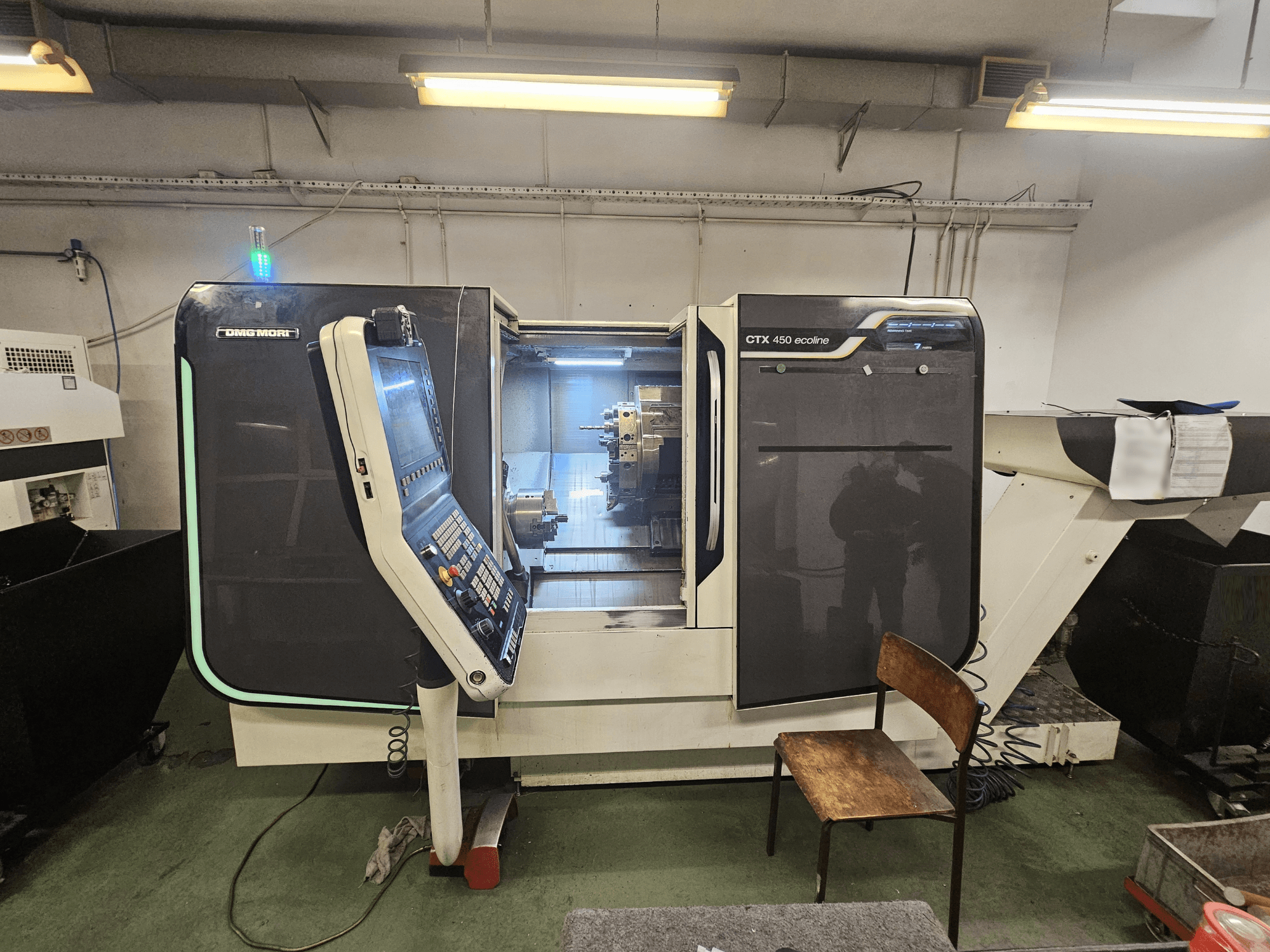

This DMG CTX 450 V3 horizontal turning machine was manufactured in 2014. It features a Siemens 840D SL CNC control, a 12-position VDI 40 tool turret with driven tools, and a high-torque main spindle. The compact design includes side chip discharge and a heavy-duty hydraulic tailstock. Ideal for high-precision turning, it also has a bar machining capability with a maximum bar diameter of 65 mm. Contact us for more information about this machine.
Übersicht
- Hersteller: DMG
- jahr: 2014
- MODELL: CTX 450 V3
- Produktionsstunden: 13252
- anwendungstyp: Drehen
- Standort: Polen
- maschinentyp: Horizontal-Drehmaschine
- Marke Steuergerät: SIEMENS
Technische Daten - DMG CTX 450 V3
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: 840D SL
Bewegung
- Anzahl der Achsen: 2
Technische Spezifikation
- Spindelleistung: 17.5 kW
- Spindeldrehzahl: 4000 RPM
Zusätzliche Informationen
Control: Siemens Sinumerik 840D SL with ShopTurn; Ergonomic SlimlinePanel; Ethernet and USB data transfer; graphical support; ProgressLine & PlanOnLight; electronic cycle-time and part-count display
Tool system: 12-position servo turret, VDI 40; 12 driven tool stations (DIN 5480 coupling); possibility to mount 6 BT toolholders on turret periphery
Measuring systems: Direct measuring systems on X and Z with air-purge protection
Spindle & workholding: Main spindle 17.5 kW / 370 Nm (40% ED), up to 4000 rpm; bar machining through spindle; max. bar diameter 65 mm; chuck with through-hole clamping mechanism
Tailstock: Heavy-duty hydraulic tailstock, programmable with two selectable feed speeds
Axes/guides: Linear guides on all axes, width 45 mm; rigid machine bed; high positioning accuracy
Footprint/chips: Compact footprint; chip discharge from the side
Lighting: Integrated LED work area lighting
Coolant: High-pressure coolant pump 12 bar; manual coolant flushing gun 5 bar
Additional equipment
Chip conveyor (included)
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
