DMG - CLX 450 V6PL-TUR-DMG-2022-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used DMG CLX 450 V6 For Sale | gindumac.com

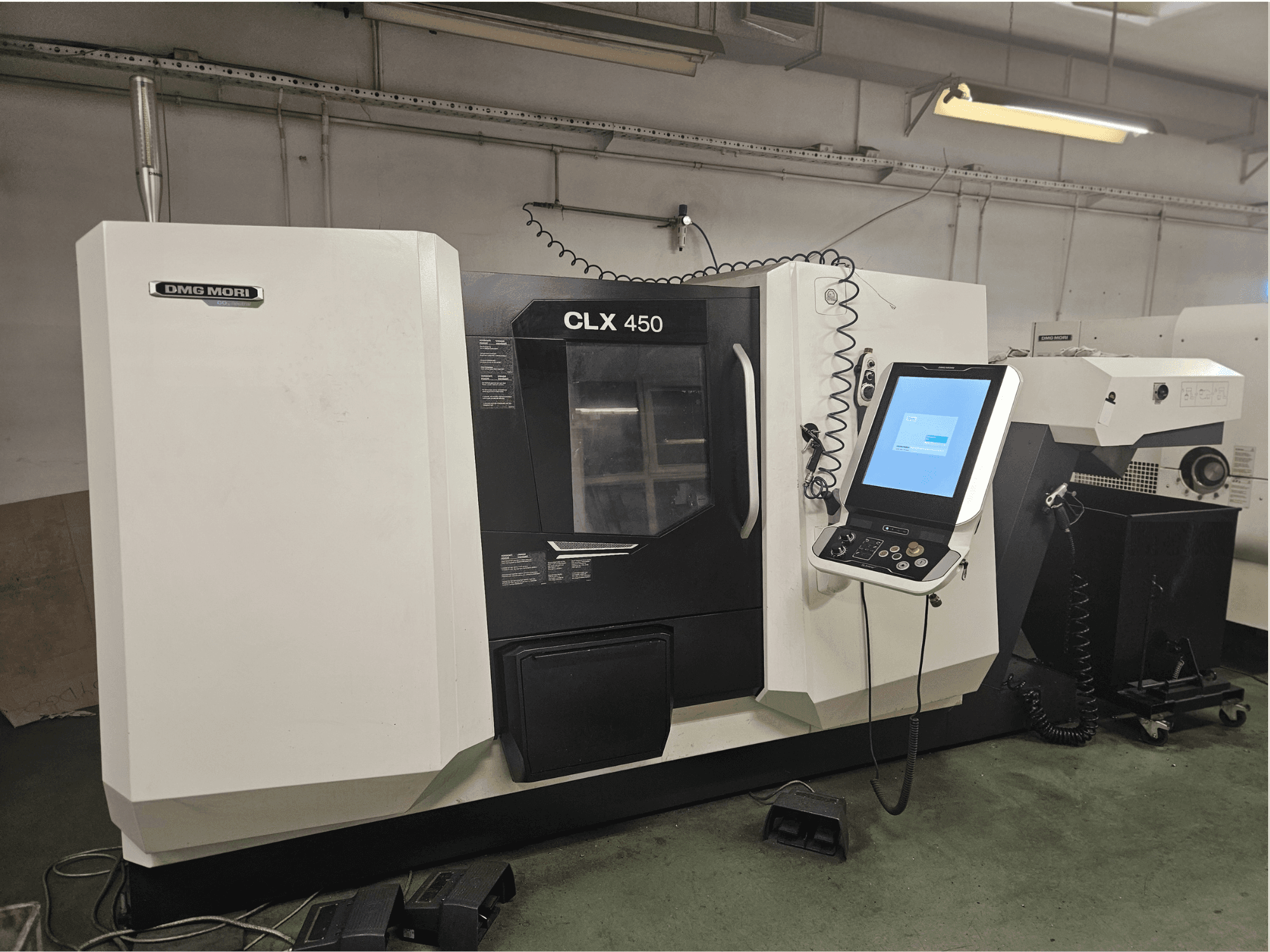

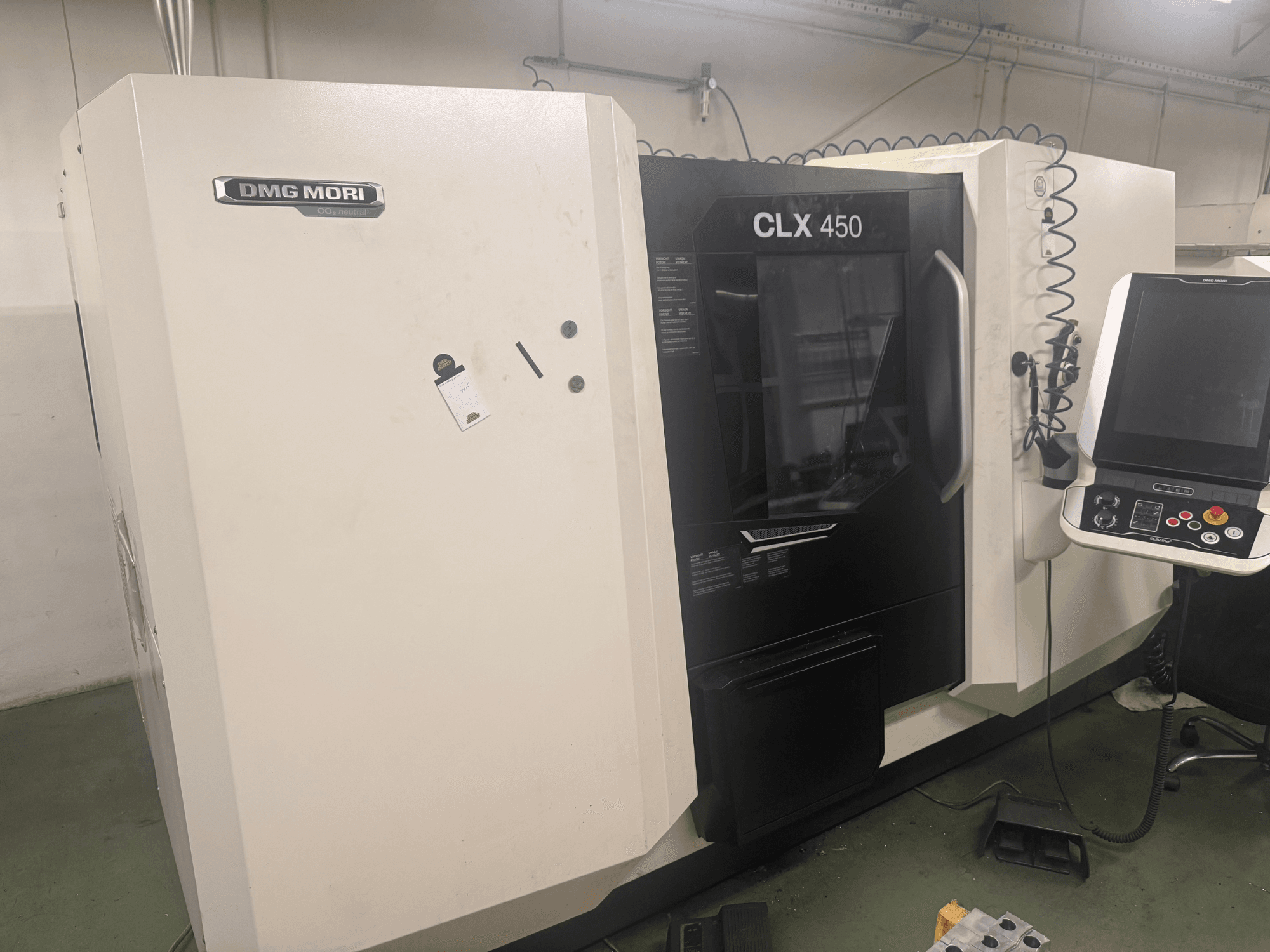

This 3-axis DMG CLX 450 V6 was manufactured in 2022. It features a Siemens 840D SL control, a main spindle with a maximum speed of 4000 rpm, and a counter-spindle reaching 5000 rpm. The machine includes a 12-position servo turret with driven tool stations and a Y-axis stroke of ±60 mm. If you are looking to get high-quality turning capabilities, consider the DMG CLX 450 V6 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: DMG
- jahr: 2022
- MODELL: CLX 450 V6
- Produktionsstunden: 2047
- anwendungstyp: Drehen
- Standort: Polen
- maschinentyp: Horizontal-Drehmaschine
- Verfügbar ab: 31/12/2025
- Marke Steuergerät: SIEMENS
Technische Daten - DMG CLX 450 V6
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: 840D SL with ShopTurn
Bewegung
- Anzahl der Achsen: 3
Technische Spezifikation
- Spindelleistung: 25.5 kW
- Spindeldrehzahl: 4000 RPM
Zusätzliche Informationen
General configuration: CNC turning center with X, Z, C axes; Y-axis ±60 mm; counter-spindle; driven tools
Operator panel: DMG MORI SLIMline multi-touch, 19″
Control: Siemens 840D SL with ShopTurn
Main spindle: A2-8"; 17/25.5 kW (100%/40% DC); max 4000 rpm; through-spindle clamping; max bar capacity Ø 80 mm
Counter-spindle: A2-6"; built-in motor spindle ISM 52; 13/14 kW (100%/40% DC); max 5000 rpm; non-through clamping
Tool turret: 12-position servo turret, VDI 40; 12 driven tool stations (DIN 5480 coupling); capability to mount 6 BT holders on turret periphery; TRIFIX precision coupling
Measuring systems: Direct measuring systems on X, Y, Z (Z with air-purge option)
Axes and performance: Y-axis stroke ±60 mm; C-axis on both spindles; high-precision 45 mm linear roller guides; increased rigidity for heavy-duty turning
Additional equipment
Chip conveyor (chip discharge to the right)
Coolant gun, 5 bar
Optional high-pressure coolant system
Optional oil mist extractor AFS 600, 600 m³/h, H13 filtration class
Manual tool measuring probe (MARPOSS)
Optional direct measurement system for Z-axis with purge
Y-Axis Parting Cycle option (V4/V6)
Pressure-differential clamping for main spindle
External chuck flushing (main and counter-spindle)
4-colour signal tower
Setup package included (C-P7223F)
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
