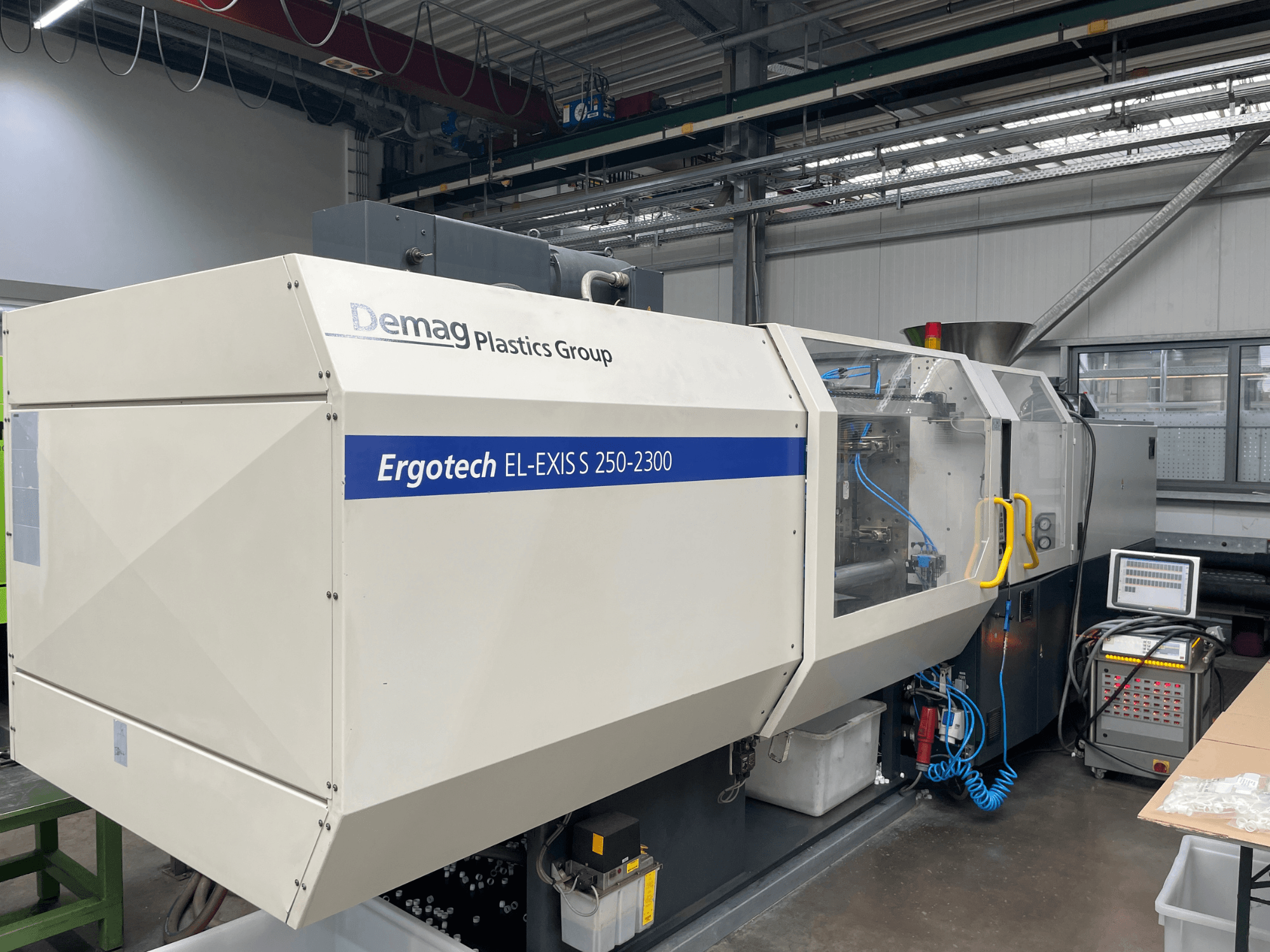

DEMAG - El Exis S250/630-2300DE-INJ-DEM-2003-00003

• Clamping unit

  • Locking force: 2750 kN

  • Tie bar spacing (H x V): 630 x 630 mm

  • Platen dimensions: 950 x 950 mm

  • Mold installation height: min 330 mm / max 830 mm

  • Max daylight (open distance): 1505 mm

  • Opening stroke: 675 mm

  • Ejector: 200 mm stroke / 80 kN force

  • Mold weight capacity: 3300 kg total (1100 kg fixed / 2200 kg moving)

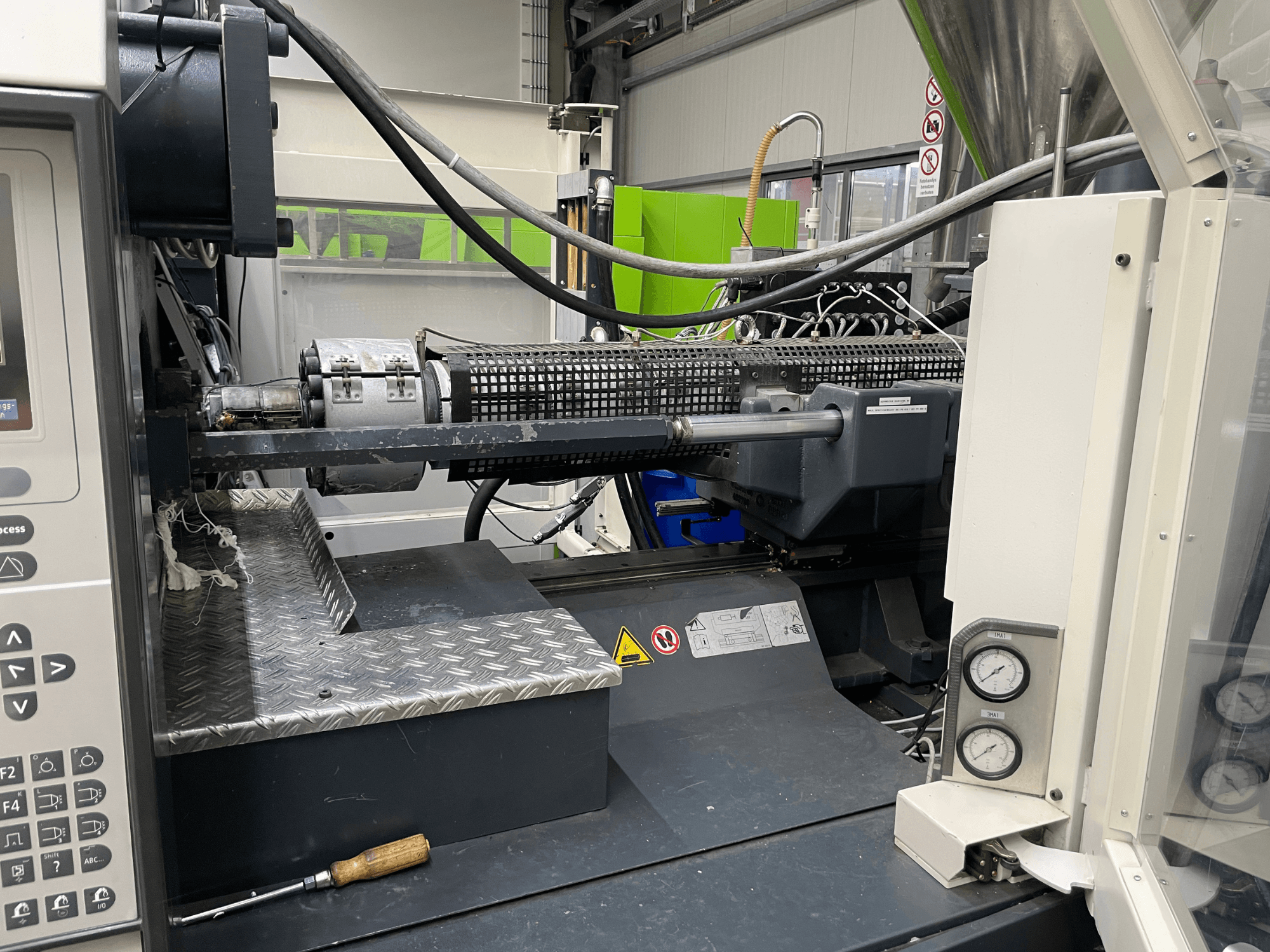

• Injection unit (Type 840)

  • Screw diameter: 60 mm

  • Shot volume: 636 cm³

  • Shot weight (PS): 579 g

  • Injection pressure: 1351 bar

  • Screw speed: 326 rpm

  • Plasticizing rate (PS): 74 g/s

  • Nozzle: radius 15 mm / bore 3 mm

• Injection unit (Type 2300)

  • Screw diameter: 60 mm

  • Shot volume: 891 cm³

  • Shot weight (PS): 810 g

  • Injection pressure: 2420 bar

• Power and drive

  • System type: Hydraulic (pump motor)

  • Pump motor power: 37 kW

  • Installed heating power: 14.8 kW

  • Hybrid drive power consumption:

    • Total installed power: 124 kW

    • Electric screw drive: 47 kW

    • Electric clamp drive: 32 kW

    • Hydraulic pump: 22 kW

• Options/controls

  • Core pulls: 2x (moving side)

  • Valve gate control: 1x hydraulic / 0x pneumatic

  • Mold temperature control: 9‑zone hot runner integrated

  • Interfaces: Printer, SPC process control

• General specifications

  • Oil tank: 700 liters

  • Dry cycle: 2.00 s

  • Noise level: 74 dB(A)

• Note from owner

  • Describes a hybrid high-speed machine with a larger injection unit (Type 2300 vs Type 840) than the referenced inventory machine above.

Additional equipment

• Linear robot W633-961 (axes: X=900 mm / Y=1600 mm / Z=2500 mm)
