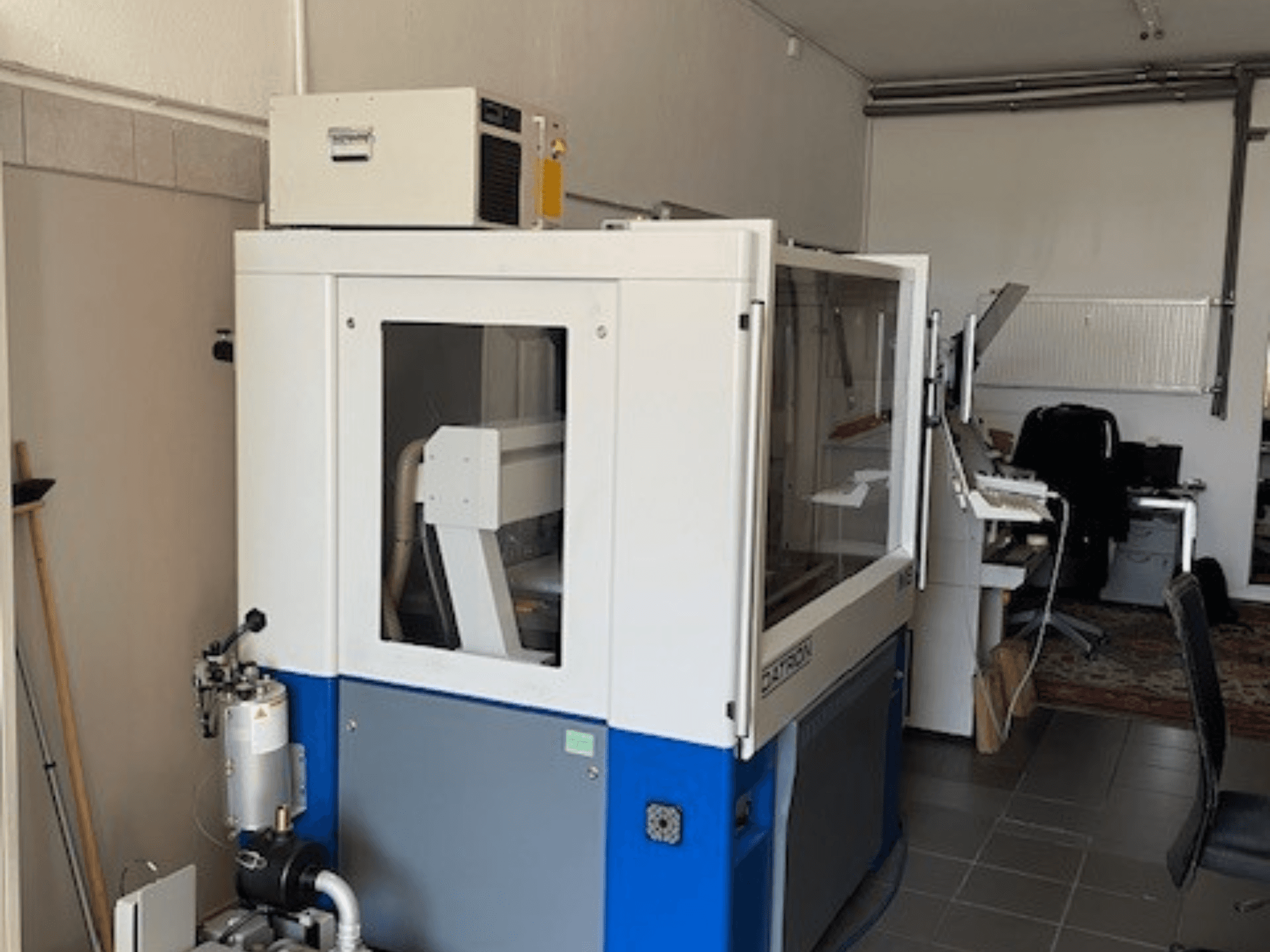

This 3-axis Datron M8 vertical machining center was manufactured in 2011. It features a robust gantry design with double-supported drives and precision guideways. Key specifications include a 2.0 kW SF spindle with speeds up to 60,000 rpm, a 15-position tool changer, and a travel range of 1020 mm x 800 mm x 240 mm. Ideal for detailed and precise machining tasks. Contact us for more information about this machine.
Übersicht
- Hersteller: Datron
- jahr: 2011
- MODELL: M8
- Produktionsstunden: 50
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Vertikal-Bearbeitungszentrum
Technische Daten - Datron M8
Maße
- Maschinenhöhe: 1950 mm
- Maschinenlänge: 1850 mm
- Maschinengewicht: 915 kg
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 1020 mm
- Y-Achsverfahrweg: 800 mm
- Z-Achsverfahrweg: 240 mm
Zusätzliche Informationen
Configuration: SF spindle 2.0 kW HighS H2.0 (up to 60,000 rpm), direct-switching
Tool holding: Direct clamping, max Ø 8 mm; 6 mm collet
Tool changer: 15-position with length sensor, direct clamping
Machine design: Gantry design with double-supported drives; solid polymer concrete on steel frame; precision guideways
Table: Coordinate table (without cutout)
Travels: X 1020 mm, Y 800 mm, Z 240 mm; gantry spacing 200 mm
Drives: Digital servo drives; ball screw per axis
Feed rate: up to 20 m/min
Control: DATRON 3D-CNC control V9; LCD/control computer with keyboard and 19" monitor (integrated CD drive)
Cooling/Lubrication: DATRON cooling spray system; spindle cooler type H-K GK; speed option for SF spindle
Additional equipment
Probing/sensors:
XYZ sensor (complete with swivel arm, operating materials, mounting), feature: full software control
Z-axis TP-D sensor
Z-axis height sensor
Clamping technology:
Vacuum module clamping plate 650 x 450 x 40 mm, 3 connections (approx. 27 kg); accessories: VakuCard, VakuCardMatt
T-slot module clamping plate 460 x 250 x 83 mm (250 x 460 x 80 nominal), with fixed jaw, 2 rows, 450 Type B; includes centering bushing and seal; accessories: short-stroke clamping elements
Short-stroke clamping element, pneumatic-hydraulic, Type KSE-PH (130 x 110 x 65 mm, 1.6 kg; operating pressure 1–8 bar; stroke 7 mm; clamping force up to 3,200 N); includes compressed air hose; accessory: fixed clamping jaw
Vacuum system:
Vacuum distributor 3-way V V-3 with shut-off valves (incl. additional shut-off with vent), vacuum gauge, through-wall fitting, hoses, and complete mounting hardware
Vacuum pump Type VP-B-1, rotary vane, oil sump lubrication; suction capacity 100 m³/h; ultimate pressure 20 mbar; motor 3.0 kW; 3 x 400 V; sound pressure level 67 dB(A); dimensions 748 x 433 x 310 mm; weight 70 kg; oil capacity 2 l; includes three-phase contactor, rotary valve, differential pressure switch, vacuum reservoir, motor protection switch, oil monitoring, intake filter, and three-phase contactor
Clamping surface capability up to 1,000 x 1,500 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
