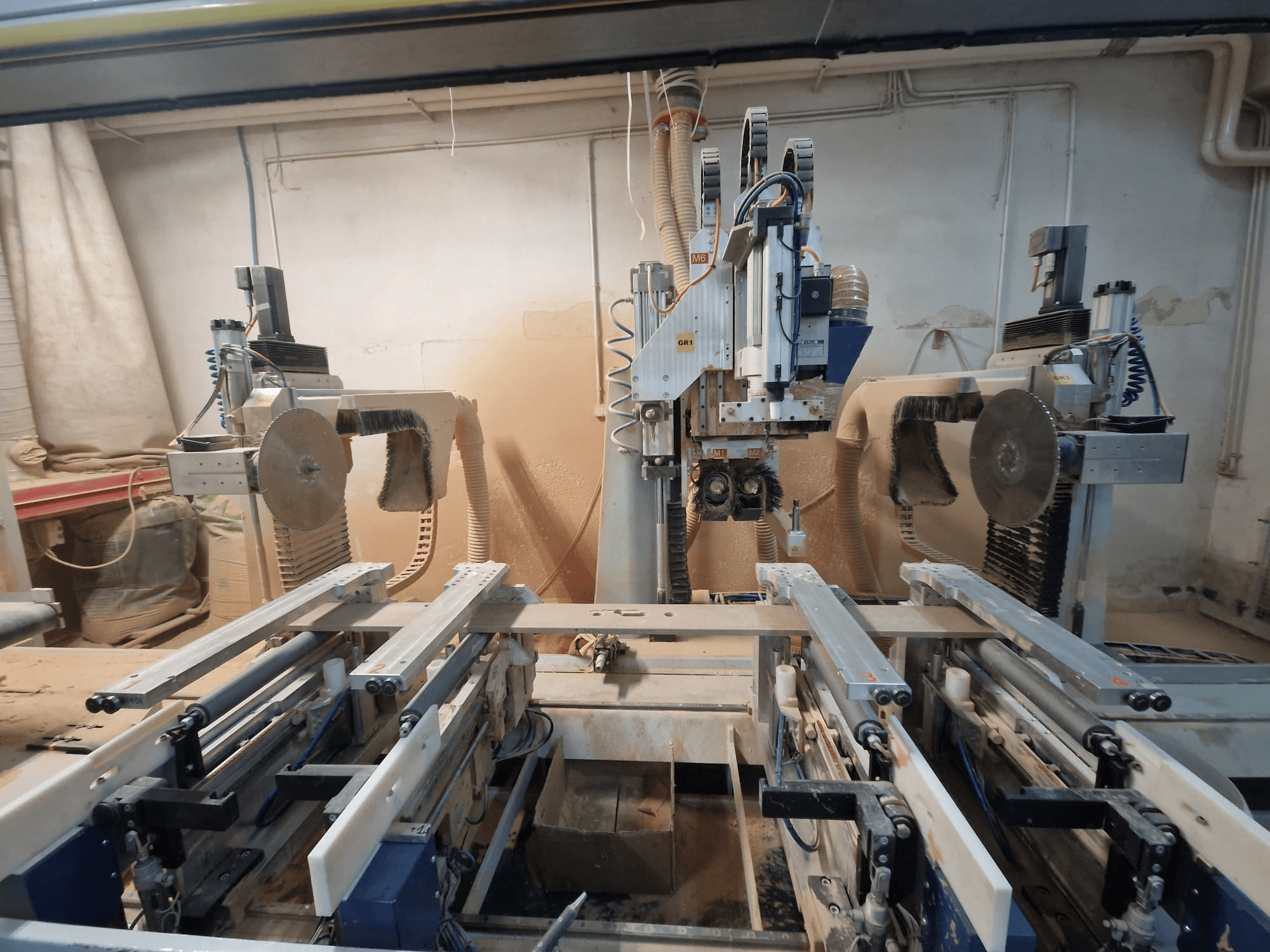

CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.
CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.

COMEC - MD JAMB 9XPL-CNC-COM-2015-00001

135.000 €
GINDUMAC Preis
(Ex works)
Erhalten Sie ein offizielles Angebot
Maschine besichtigen
gegenangebot abgeben
PDF Herunterladen

Haben Sie weitere Fragen? Kontaktieren Sie uns!

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Über Whatsapp kontaktieren
In Originalsprache anzeigen

CNC Wood Machining Centre manufactured in 2015. This COMEC MD JAMB 9X features a multi-head design ideal for machining door frames, including DIN-adjustable options. It includes an automatic unloading conveyor and advanced CNC control with NC CAM SUITE software, allowing for simultaneous operations across its three independent heads. Consider the opportunity to buy this COMEC MD JAMB 9X CNC Wood Machining Centre. Contact us for further details.

Übersicht

  • Hersteller: COMEC
  • jahr: 2015
  • MODELL: MD JAMB 9X
  • anwendungstyp: CNC-Bearbeitung
  • Standort: Polen
  • maschinentyp: CNC-Holzbearbeitungszentrum

Technische Daten - COMEC MD JAMB 9X

Bewegung

  • X-Achsen-Verfahrweg: 2500 mm
  • Y-Achsen-Verfahrweg: 350 mm
  • Z-Achsen-Verfahrweg: 112 mm

Zusätzliche Informationen

  • Heads: 3 independent CNC-controlled heads (left, central, right); control can independently manage all 3 heads on all axes; allows simultaneous identical or different operations

  • Left and right heads:

    • 1 cutting/drilling unit per head with automatic pneumatic inclination of saw blades and drill groups

    • 2 counter-rotating horizontal electro-spindles for milling

    • 1 milling and mortising electro-spindle

    • Special sleeve for slotting on the lower side of the workpiece

  • Vertical units:

    • 1 vertical electro-spindle for milling

    • 1 vertical electro-spindle for drilling seats for metal clips

    • 1 vertical electro-spindle with special drilling head (5 drills arranged at 90°)

  • Workholding/benches:

    • Workpiece holding bench divided into 4 elements, adjustable on ball-rail guide system

    • Automatic locking, unlocking, and positioning controlled by the central head (CNC-controlled)

  • Control and software:

    • CNC control with NC CAM SUITE software

    • CAD/CAM: TPAED132 with 3D workpiece visualization, integrated movement optimizer, and dedicated post-processor

  • Safety:

    • Full perimetral safety enclosure

    • CE compliant

Additional equipment

  • Automatic unloading conveyor

  • Chip evacuation conveyor

  • Special loading benches for fully assembled door jambs


*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
