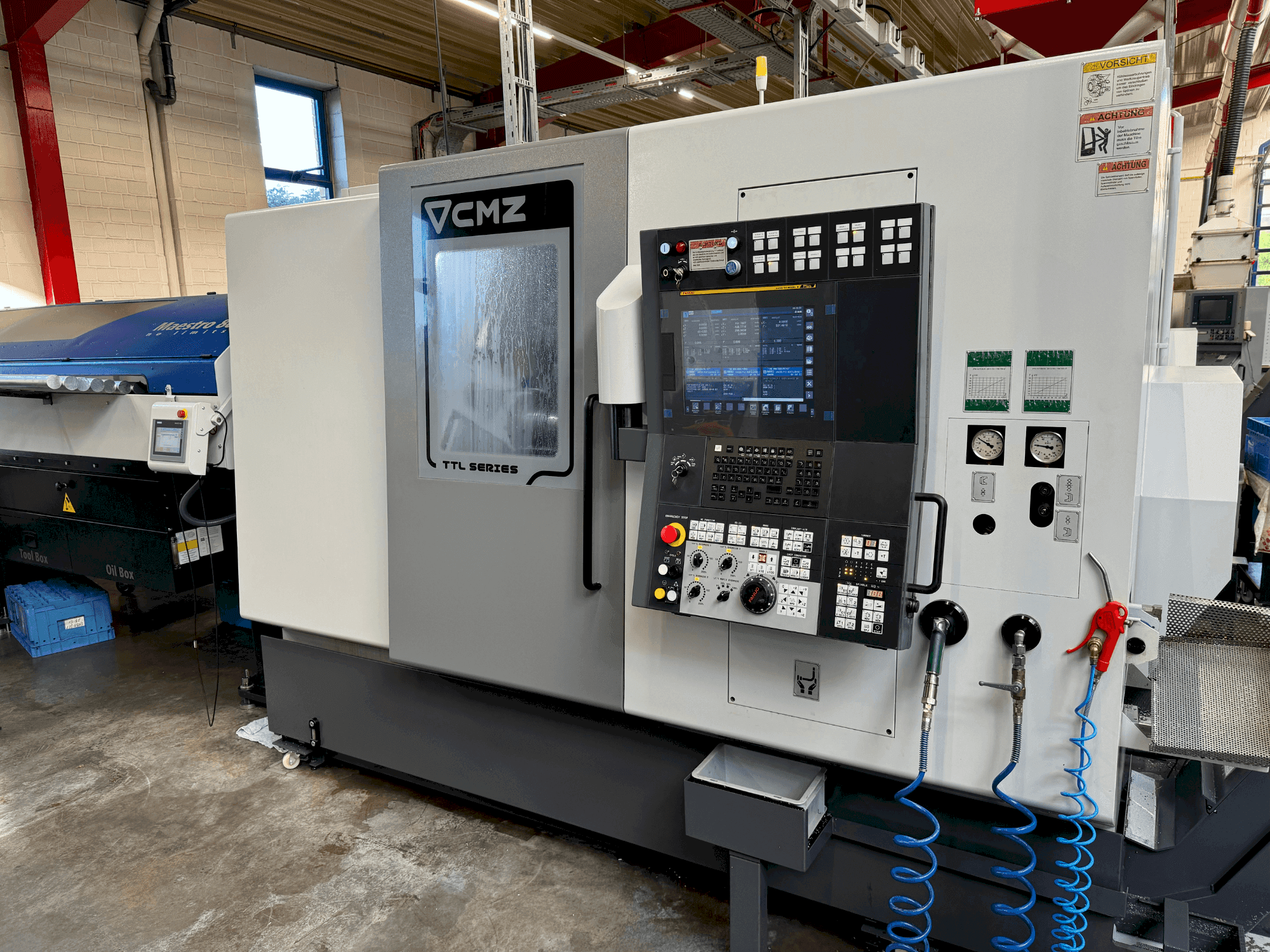

CMZ - TTL-66-66-T1Y-T2YDE-TUR-CMZ-2022-00001

Additional equipment

• Machine language: German / Machine manuals available for download in pdf format / G codes type A in Fanuc control / LPS for left spindle
• Reduction tube for left spindle / 3 jaw power chuck SMW-Autoblock BB-D 210 Ø66 for left spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for left spindle
• Changing device Hainbuch diam. 65 / LPS system in right spindle / Tailstock on the right spindle (long version) for moving tailstock center CM 3 (not included in the option) / clamping pressure for right spindle; selectable via M function
• 3 jaw power chuck SMW-Autoblok BBD 175 Ø56 for right spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for right-hand spindle / Tool presetter (tool presetter) / Lateral chip conveyor (standard version)
• Coolant system consisting of two coolant pumps up to 70 bar, one for each turret, independently adjustable to 70-60-50-40-30-10 bar, mounted on an additional tank of 330 liters, as well as a filter system of 10µm.
• Coolant washing nozzle / Machine status light / Tool life monitoring (tool life management) / Tool load monitoring
• Programmable, automatic parts catcher (pneumatic) / The workpiece remover is equipped with a collecting tray that opens and closes pneumatically to remove the workpiece.
• Coolant supply through right-hand spindle
• Optional: Cucchi Giovanni Typ DB EVO70 loader

Machine Benefits

Technical Machine Benefits

• Max rod diameter: 66 mm / max turning diameter: 220 mm / torque: 205 nm / distance between main and counter spindle: 800 mm
• Speed agw: 12000 min-1 / number of driven tool positions: 12 / high-pressure system: 70 bar with filter system and additional tank
• Cmc cnc lathe model: ttl-66-66-t1y-t2y
• Machine 1: 7374 hours /machine 2: 9973 hours

Extra Information

2nd identical machine available also from 2022 // the hour meters of the machines are Machine 1 : 8086 hours / Machine 2 : 10775 hours
