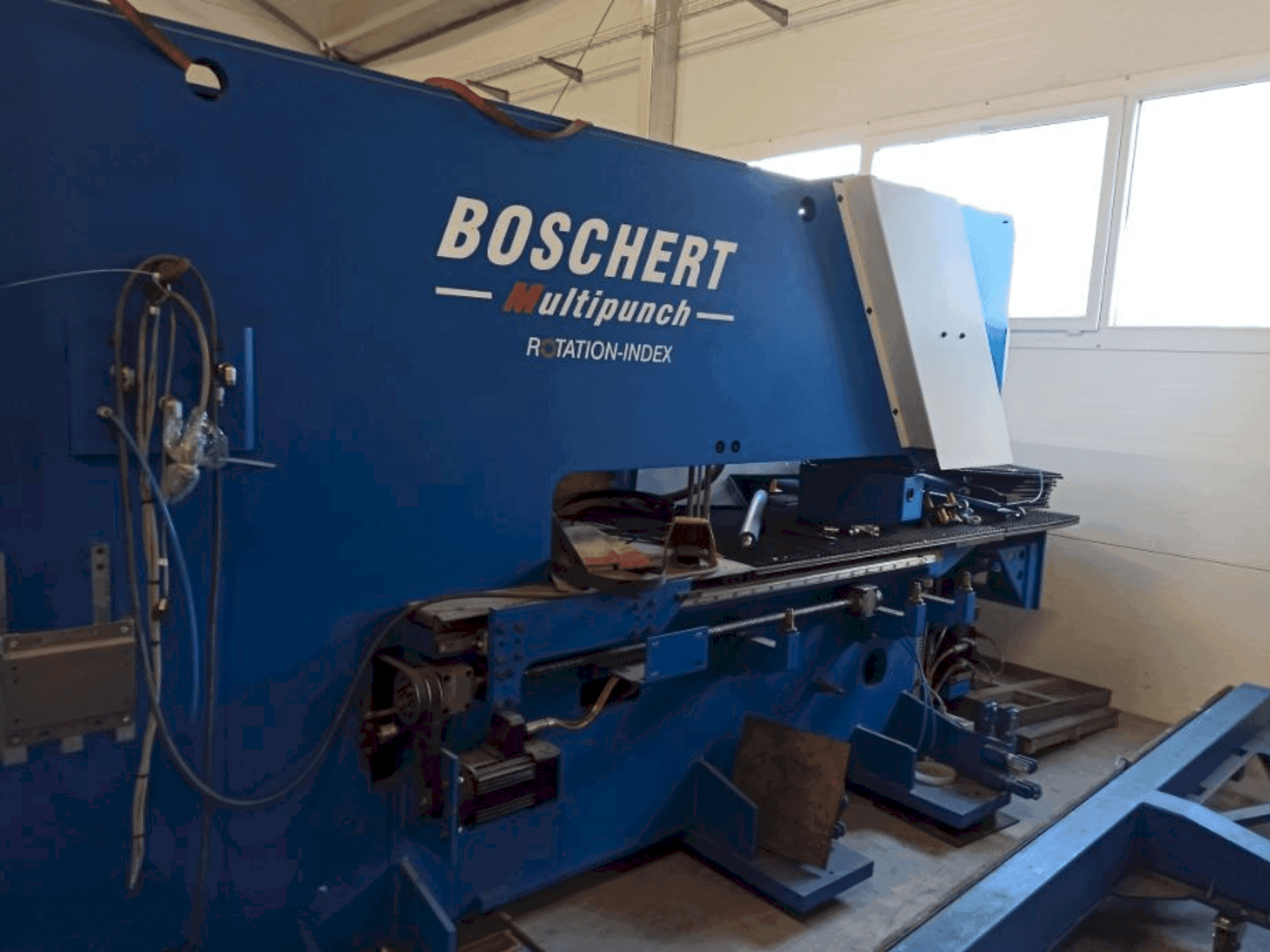

BOSCHERT - MULTIPUNCH 1250PL-PUN-BOS-2013-00001

Additional equipment

• Options included: 3x Revotool/ Tool holders, sizes 1 and 2 / Some additional tools as shown in the photos

Machine Benefits

Qualitative Machine Benefits

• The machine had a general overhaul in 2020 and was in operation until 2023.
• In 2023, the x-axis started to fail – it lost accuracy when punching holes.
• The hydraulic system is expected to be in working condition.
• The electrical system is mostly complete, but a few components are missing: one servo drive, one motor protection fuse, and one cabinet fan.

Technical Machine Benefits

• Max. Positioning speed (x-axis): 60 m/min/max. Positioning speed (y-axis): 60 m/min/max. Positioning speed (x & y simultaneous): 85 m/min
• Max. Workpiece weight: 200 kg
• Max. Sheet thickness: 7 mm/max. Sheet length: 9999 mm (by repositioning)
• Revotool: 4 mm/tooling system: trumpf® tooling system/max. Punching diameter: 70 mm or any shape within 70 mm/tool changing time: 1–5 seconds
• Max. Hydraulic punching power: 280 kn
• Max. Strokes (standard hydraulic): 250 strokes/min/max. Strokes (fast hydraulic): 800 strokes/min
