- ➤ Used Biglia B.436-Y2 For Sale | gindumac.com

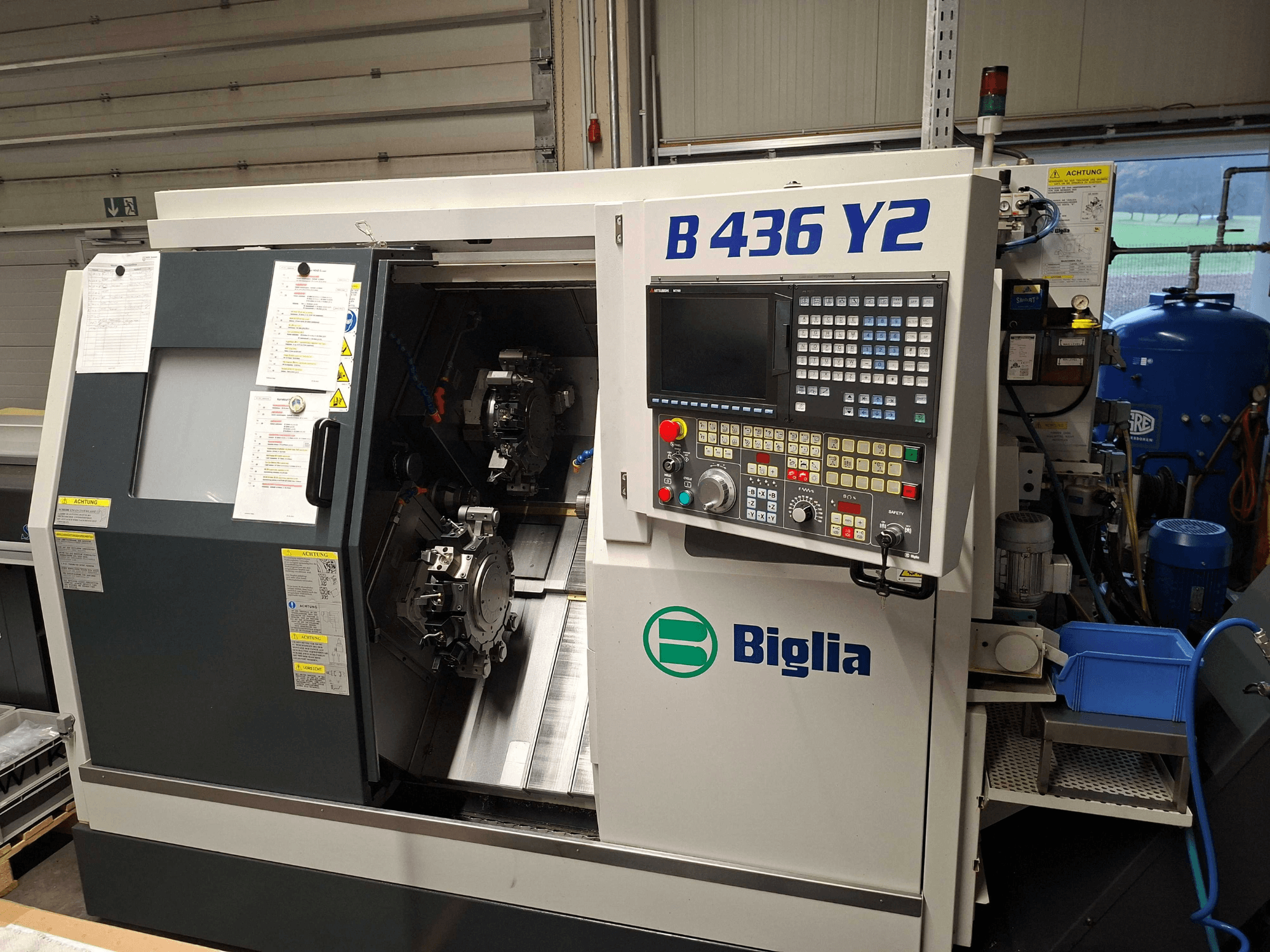

This 6-axis Biglia B.436-Y2 horizontal turning machine was manufactured in 2016. It features a maximum bar diameter of 36 mm, spindle speed up to 7000 rpm, and motor power of 11 kW. With rapid traverse rates up to 30 m/min and a comprehensive toolset including high-precision boring bar holders and radial drilling heads, this machine offers robust capabilities for complex machining tasks. If you are looking to get high-quality turning capabilities consider the Biglia B.436-Y2 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: Biglia
- jahr: 2016
- MODELL: B.436-Y2
- Produktionsstunden: 14063
- anwendungstyp: Drehen
- Standort: Österreich
- maschinentyp: Horizontal-Drehmaschine
Technische Daten - Biglia B.436-Y2
Bewegung
- Anzahl der Achsen: 6
Technische Spezifikation
- Spindelleistung: 11 kW
- Spindeldrehzahl: 7000 RPM
Zusätzliche Informationen
Max. bar diameter: 36 mm
Aiming tube: 37.5 mm
Spindle nose: 115 mm
Draw tube: 46 mm
Continuous motor power: 7.5 kW
Continuous power available from: 1700 rpm
Max. torque: 62 Nm
Cylinder thrust area: 75 cm²
Cylinder stroke (max.) for clamping operation: 26 mm
Longitudinal slide (Z1 axis)
Max. stroke: 300 mm
Ball screw diameter/pitch: 25/10 mm
Max. rapid traverse: 30 m/min
Cross slide (X1 axis)
Max. stroke: 85 mm
Ball screw diameter/pitch: 25/5 mm
Max. rapid traverse: 15 m/min
Vertical slide (Y1 axis)
Max. stroke: 50 (+25/-25) mm
Ball screw diameter/pitch: 25/5 mm
Max. rapid traverse: 15 m/min
Longitudinal slide (Z2 axis)
Max. stroke: 300 mm
Ball screw diameter/pitch: 25/10 mm
Max. rapid traverse: 30 m/min
Cross slide (X2 axis)
Max. stroke: 85 mm
Ball screw diameter/pitch: 25/5 mm
Max. rapid traverse: 15 m/min
Vertical slide (Y2 axis)
Max. stroke: 50 (+25/-25) mm
Ball screw diameter/pitch: 25/5 mm
Max. rapid traverse: 15 m/min
Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V
Operating pressure: 4.8–6.9 bar
Max. air consumption (supply): 0.10 m³/min (guideline)
Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm
Overall height (max.): 1900 mm
Additional equipment
High-precision boring bar holder Ø25 mm with internal coolant (Oesterle)
Precision reducing sleeve D=25/16 (Oesterle)
Precision reducing sleeve D=25/12 (Oesterle)
Precision reducing sleeve D=25/06 (Oesterle)
Collet chuck ER20, shank D=25 mm (Oesterle)
Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm
Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT)
Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT)
External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle)
Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle)
High-pressure pump 40 bar with replaceable filter cartridge
Coolant gun including its own pump
Collet chuck
The machine ran with cooling lubricant! Brand: Castrol Type: Hysol MB 50
The tension of the main and counter spindle is hydraulic and adjustable by pressure! A collet chuck with stroke limitation is mounted on the counter spindle! The tool presetting is a measuring probe that is only used to measure the tools! It also functions properly! The cooling lubricant pressure is 7 bar and can be increased to a maximum of 40 bar via M code! The workpiece removal is permanently installed in the machine and can be freely programmed! The bar loading magazine is included! According to the operating instructions, the bar loader can handle 1500 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
