Biglia - B.436-Y2 AT-TUR-BIG-2016-00001

Name: Biglia B.436-Y2
Brand: Biglia
SKU: AT-TUR-BIG-2016-00001
Price: 84000 EUR
Availability: InStock

84.000 €

GINDUMAC Preis

(Ex works)

Erhalten Sie ein offizielles Angebot

Maschine besichtigen

gegenangebot abgeben

PDF Herunterladen

Haben Sie weitere Fragen? Kontaktieren Sie uns!

Philipp Gubisch

+49 162 402 75 81

p.gubisch@gindumac.com

Über Whatsapp kontaktieren

GINDUMAC
Produkte
Werkzeugmaschinen
➤ Used Biglia B.436-Y2 For Sale | gindumac.com

In Originalsprache anzeigen

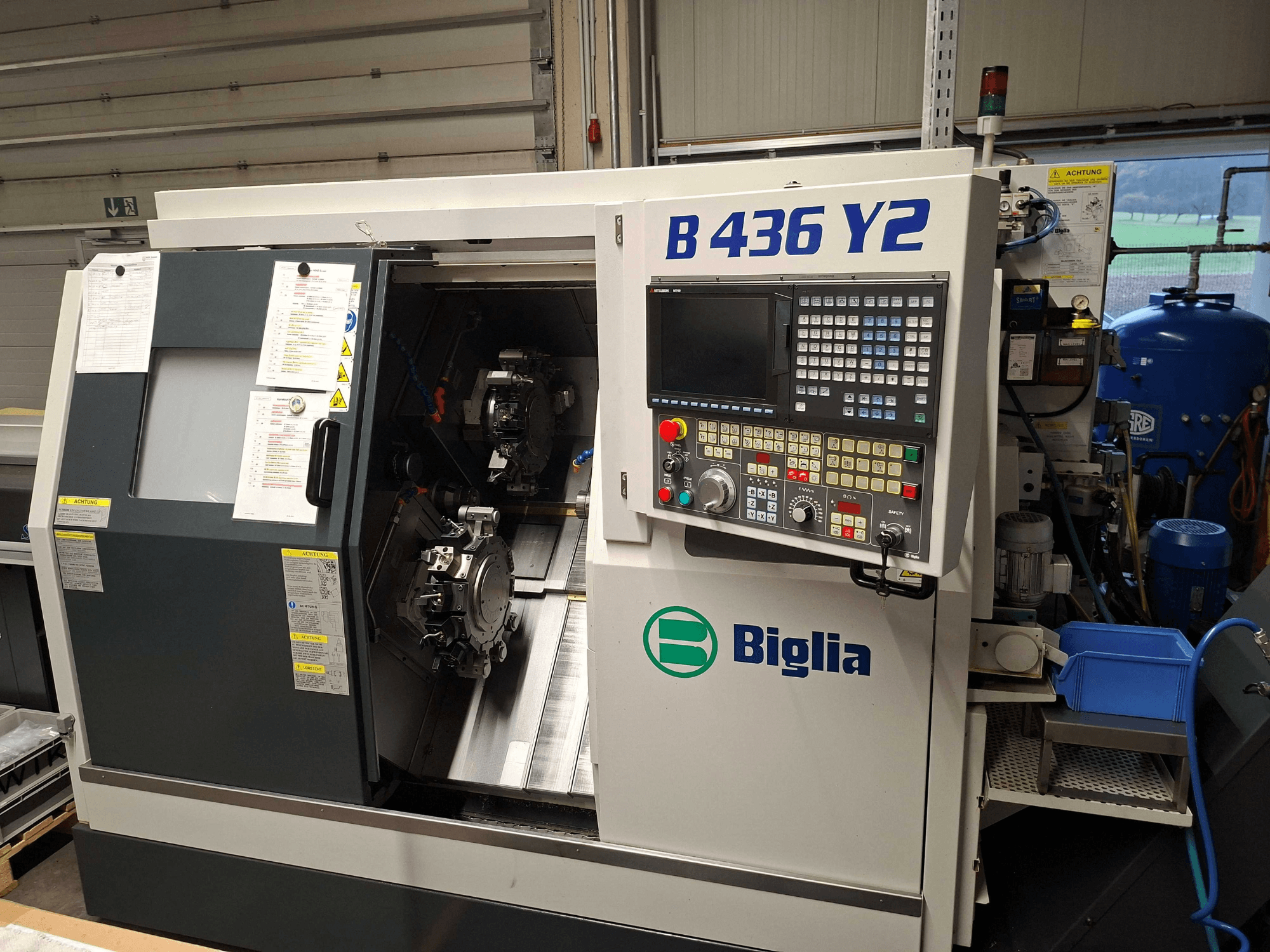

This 6-axis Biglia B.436-Y2 horizontal turning machine was manufactured in 2016. It features a maximum bar diameter of 36 mm, spindle speed up to 7000 rpm, and motor power of 11 kW. With rapid traverse rates up to 30 m/min and a comprehensive toolset including high-precision boring bar holders and radial drilling heads, this machine offers robust capabilities for complex machining tasks. If you are looking to get high-quality turning capabilities consider the Biglia B.436-Y2 machine we have for sale. Contact us for more information.

Übersicht

Hersteller: Biglia
jahr: 2016
MODELL: B.436-Y2
Produktionsstunden: 14063
anwendungstyp: Drehen
Standort: Österreich
maschinentyp: Horizontal-Drehmaschine

Technische Daten - Biglia B.436-Y2

Bewegung

Anzahl der Achsen: 6

Technische Spezifikation

Spindelleistung: 11 kW
Spindeldrehzahl: 7000 RPM

Zusätzliche Informationen

Max. bar diameter: 36 mm
Aiming tube: 37.5 mm
Spindle nose: 115 mm
Draw tube: 46 mm
Continuous motor power: 7.5 kW
Continuous power available from: 1700 rpm
Max. torque: 62 Nm
Cylinder thrust area: 75 cm²
Cylinder stroke (max.) for clamping operation: 26 mm
Longitudinal slide (Z1 axis)
- Max. stroke: 300 mm
- Ball screw diameter/pitch: 25/10 mm
- Max. rapid traverse: 30 m/min
Cross slide (X1 axis)
- Max. stroke: 85 mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Vertical slide (Y1 axis)
- Max. stroke: 50 (+25/-25) mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Longitudinal slide (Z2 axis)
- Max. stroke: 300 mm
- Ball screw diameter/pitch: 25/10 mm
- Max. rapid traverse: 30 m/min
Cross slide (X2 axis)
- Max. stroke: 85 mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Vertical slide (Y2 axis)
- Max. stroke: 50 (+25/-25) mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V
Operating pressure: 4.8–6.9 bar
Max. air consumption (supply): 0.10 m³/min (guideline)
Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm
Overall height (max.): 1900 mm

Additional equipment

High-precision boring bar holder Ø25 mm with internal coolant (Oesterle)
Precision reducing sleeve D=25/16 (Oesterle)
Precision reducing sleeve D=25/12 (Oesterle)
Precision reducing sleeve D=25/06 (Oesterle)
Collet chuck ER20, shank D=25 mm (Oesterle)
Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm
Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT)
Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT)
External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle)
Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle)
High-pressure pump 40 bar with replaceable filter cartridge
Coolant gun including its own pump
Collet chuck

*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
