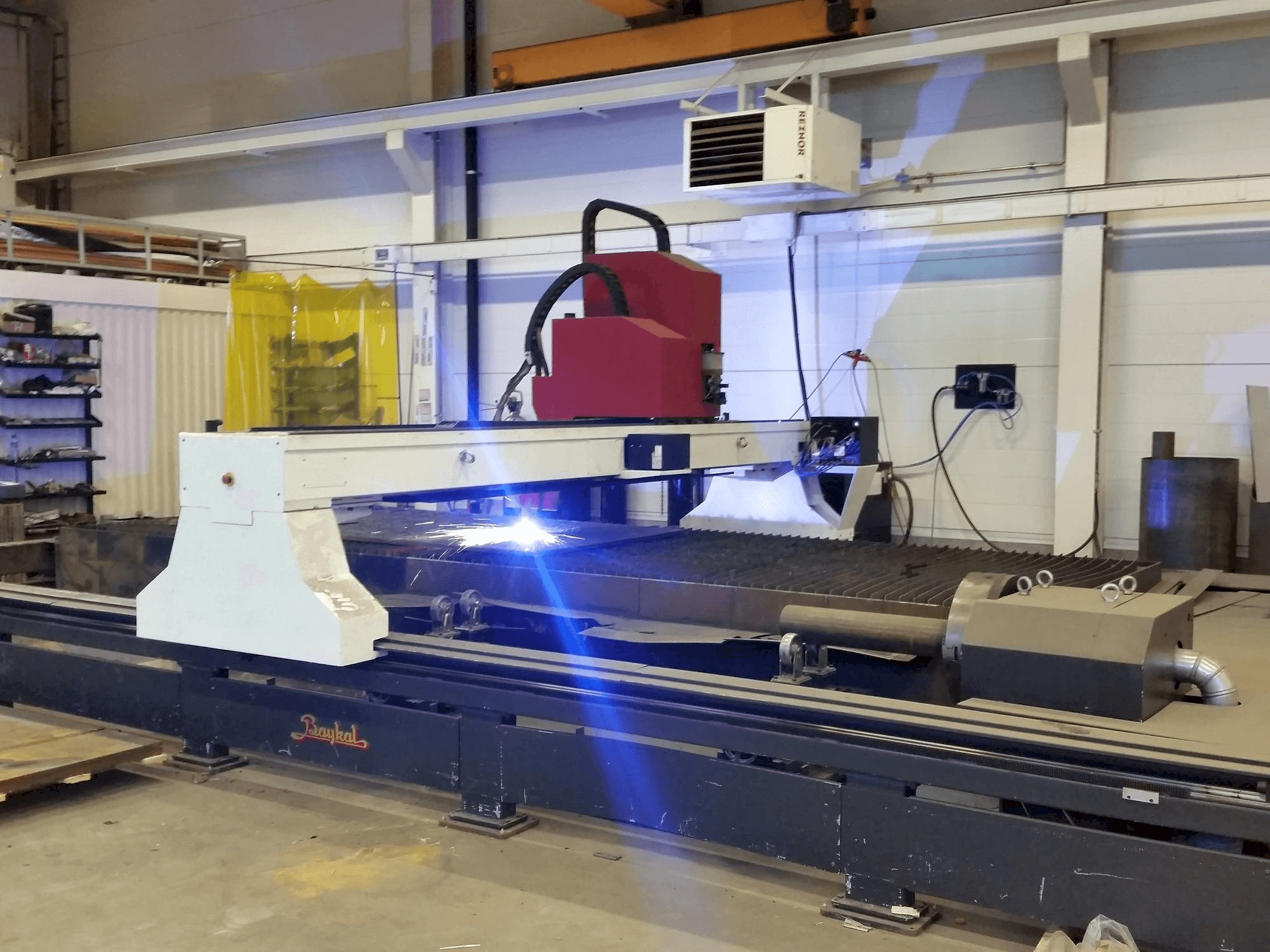

Baykal - BPL-H 2006 HPR 260XDNO-PLA-BAY-2015-00001

Machine Benefits

Qualitative Machine Benefits

• The cutting table is independently constructed from the cross beam and machine frame, to achieve positioning accuracy under any weight on the table.
• The cutting head has sensors for automatic adjustment of the cutting head cutting height.
• Collision protection on the plasma cutting head, the machine comes with electrical equipment for: 400v
• Sectioned cutting table integrated with automatic extraction system, extraction hatches that open on the work surface for better extraction, plasma cutting head : including cable pull chain
• "high-definition type plasma supply unit, programming software for nesting/optimization of parts via pc, regulator : single output
• Manual/automatic gas console for selection of plasma and additive gases, high capacity air filter unit for dust and fume collection (optional), hose package : hose package for cutting source, gas supply : hose package for gas supply
• One set of consumables (nozzles, electrode, nozzle holder, manifolds etc), positioning speed : up to 20 000 mm/min
• Working temperature : between -10° c to +30° c, exhaust system : cnc operated with pneumatic hatches, motorsy axes : left and right side two brushless ac servomotors, traverse y axes : double-sided via rack and pinion drive, motor x axis : brushless ac servo motor, transverse x axis : via rack and pinion and gear drive
• Operation y axis : double-sided, two-way longitudinal operation, operation x axis : double-sided transverse operation, guide y axis : linear guides, guide x axis : linear guide, guide x axis : linear guide
• Plasma source : hypertherm hydefinition plasma hpr260xd with, auto gas console, control : technos pc12 ( made in the usa ) windows based, software package : lantek nesting software for pc ( lantek expert ii )

Technical Machine Benefits

• Pipe cutting function Ø50-600mm
• Bevel head
• 6-station drill and thread unit, drill max Ø20mm, thread max Ø16mm
• Stationary control panel instead of panel on cutting boom, positioned on the left side of the machine when viewed from the front.
• Cutting width : 2200mm
• Cutting length : 6400mm
• Double-sided synchronized servo drive on y axis = longitudinal movement of cutting head
• Single synchronized servo drive on x axis = transverse movement of cutting head
• Ac servo driven motors (brushless)
• Fast positioning speed 20 mt/min with ± 0. 05 mm positioning accuracy
