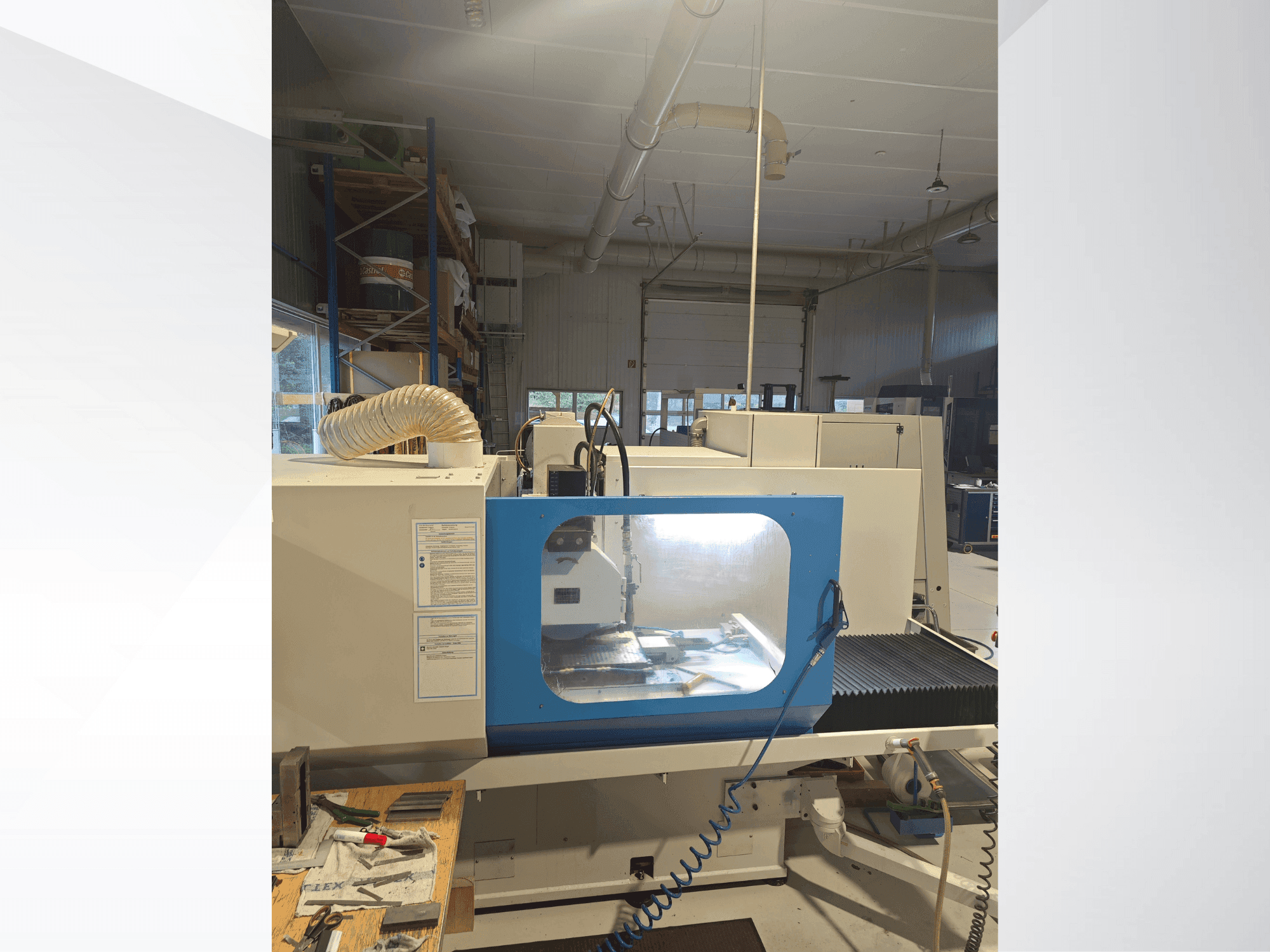

ABA - EL 1006DE-GRI-ABA-1998-00001

Machine Benefits

Technical Machine Benefits

• Longitudinal movement (x-axis): 1300 mm / longitudinal feed speed: adjustable from 2000 to 35000 mm/min / vertical movement (y-axis): max 530 mm / vertical movement speed: adjustable from 0. 2 to 3500 mm/min / transverse movement (z-axis): max 600 mm / transverse movement speed: continuously adjustable from 5 to 5000 mm/min / intermittent lateral movement: adjustable from 2 to 65 mm/pulse / smallest programming value: 0. 001 mm
• Longitudinal movement (x-axis): 1300 mm / longitudinal feed speed: adjustable from 2000 to 35000 mm/min / vertical movement (y-axis): max 530 mm / vertical movement speed: adjustable from 0. 2 to 3500 mm/min / transverse movement (z-axis): max 600 mm / transverse movement speed: continuously adjustable from 5 to 5000 mm/min / intermittent lateral movement: adjustable from 2 to 65 mm/pulse / smallest programming value: 0. 001 mm
• Drive motor / grinding wheel (c-axis) / rated speed: 1500 min-¹ / power: 11 kw / grinding wheel diameter: Ø 400 mm / max width: 60 mm / bore: Ø 127 mm
• Drive motor / grinding wheel (c-axis) / rated speed: 1500 min-¹ / power: 11 kw / grinding wheel diameter: Ø 400 mm / max width: 60 mm / bore: Ø 127 mm
• 2017 general overhauled by aba/ new spindle / new x guides / new cylinder for machine table
