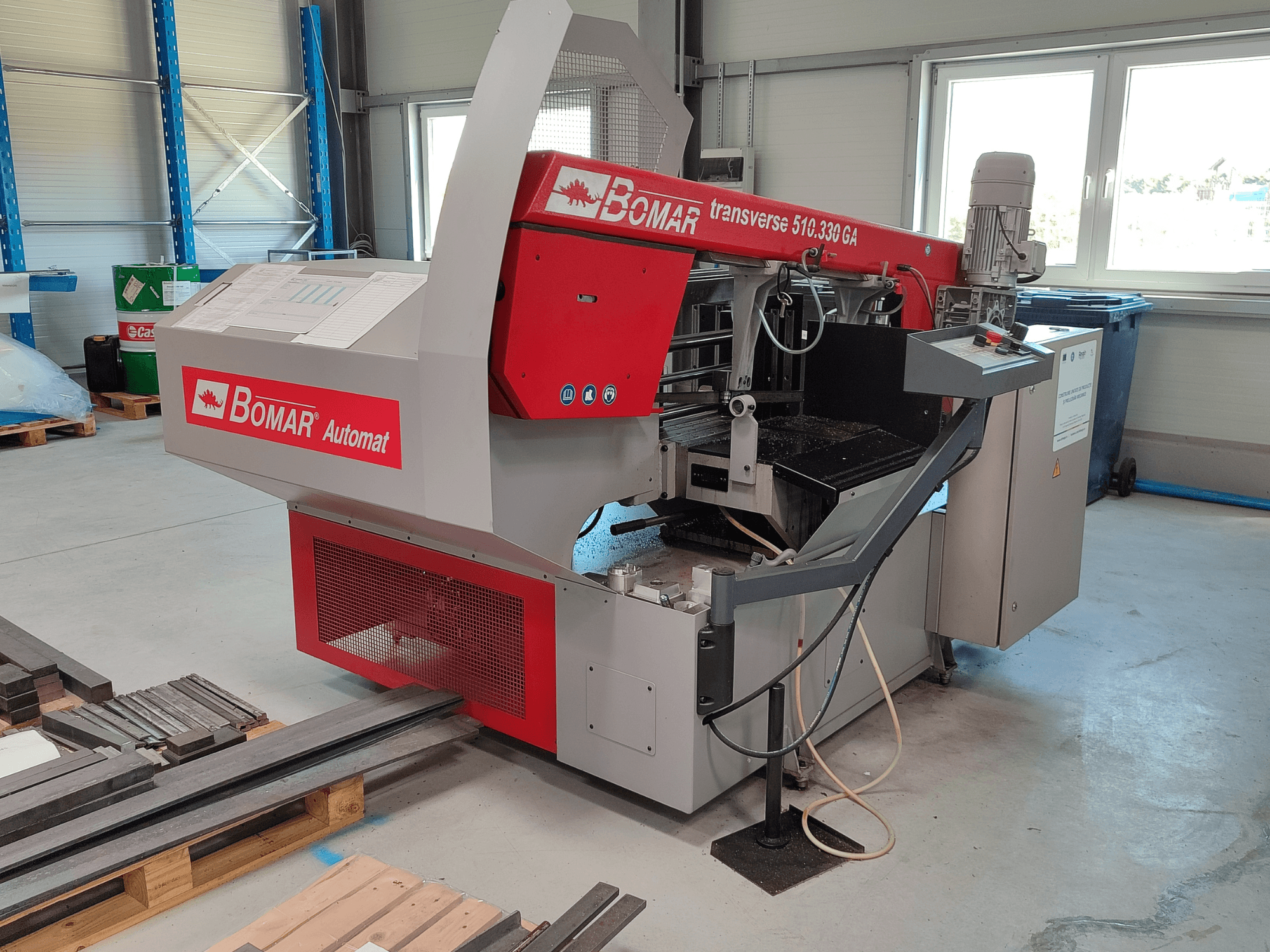

BOMAR - TRANSVERSE 510.330 GANC RO-SAW-BOM-2019-00001

Additional information

• Blade drive motor: 3 kW

• Total installed power: 6.8 kVA

• Blade speed: 20–90 m/min (variable)

• Feed length per stroke: 600 mm

• Maximum programmable feed length: 9999 mm

• Cutting capacity at 0°: Ø330 mm / 510 × 330 mm / 330 × 330 mm

• Cutting capacity at 45° right: Ø330 mm / 400 × 100 mm / 310 × 310 mm

• Cutting capacity at 60° right: Ø250 mm / 260 × 100 mm / 220 × 220 mm

• Minimum cutting diameter: Ø5 mm

• Shortest remaining piece: 250 mm (automatic) / 70 mm (manual)

• Material loading height: 780 mmFully automatic operation with CNC control panel

• Hydraulic saw arm lifting and material clamping

• Automatic pressure control during cutting

• Carbide blade guides for high precision

• Swivel saw arm up to 60° to the right

• Heavy-duty gearbox with helical gearing in oil bath

• Automatic central lubrication

• Robust construction suitable for continuous production use
